0045001051 Genuine Oven Door Hinge for Chef, Simpson, Westinghouse Ovens PAJ140W PAJ161B PAJ501R PAJ558W 61D810W 61C810W EBC5010W EUC5110W

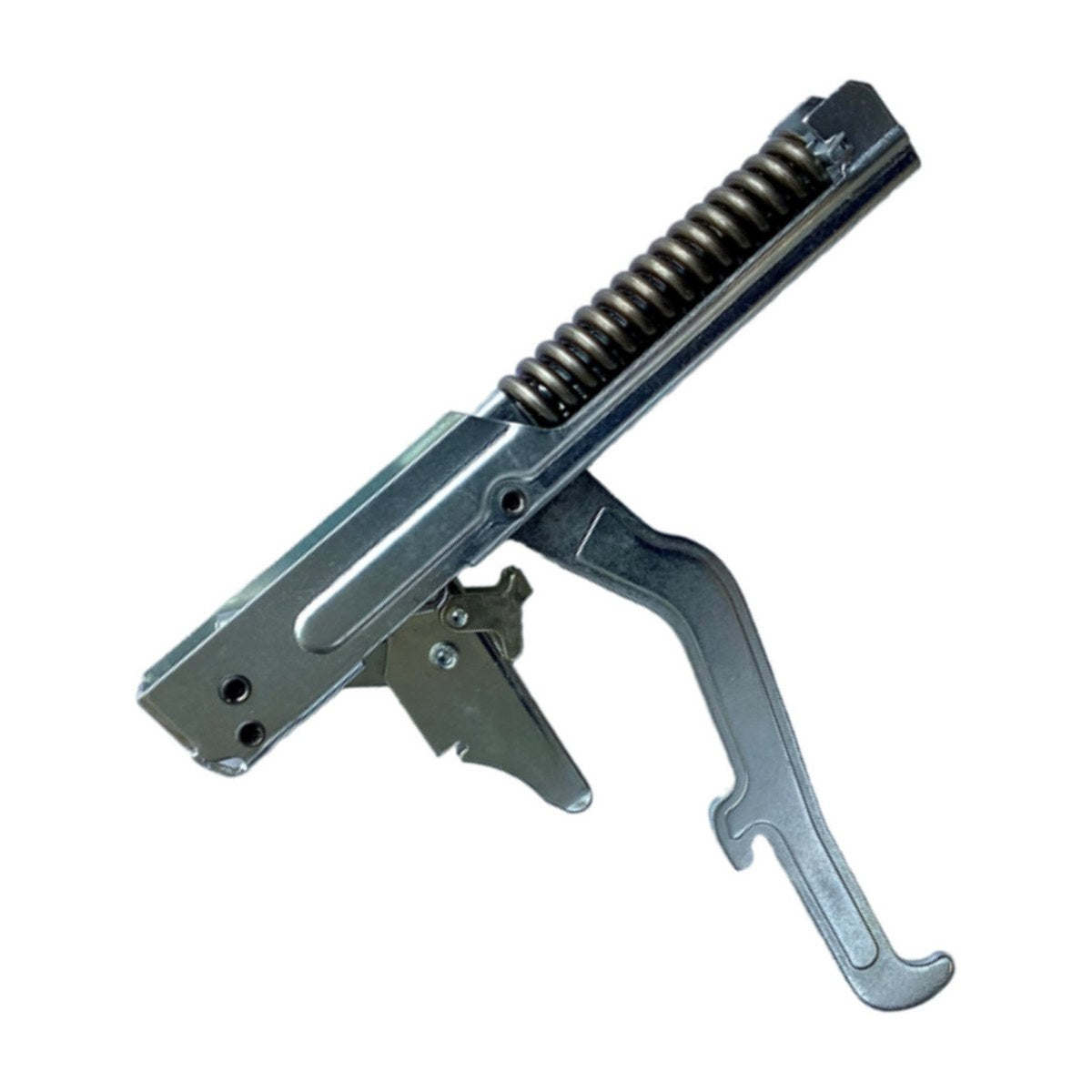

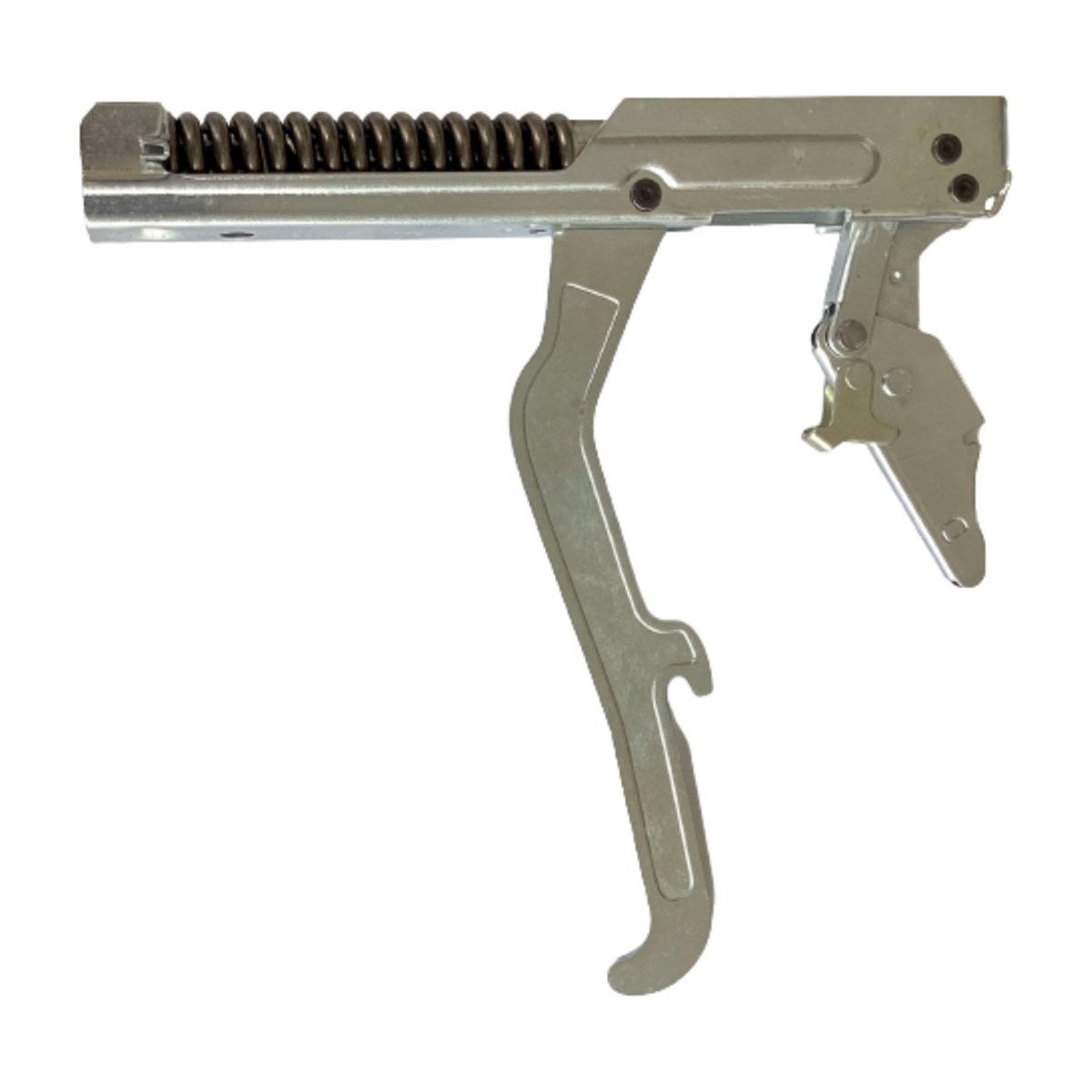

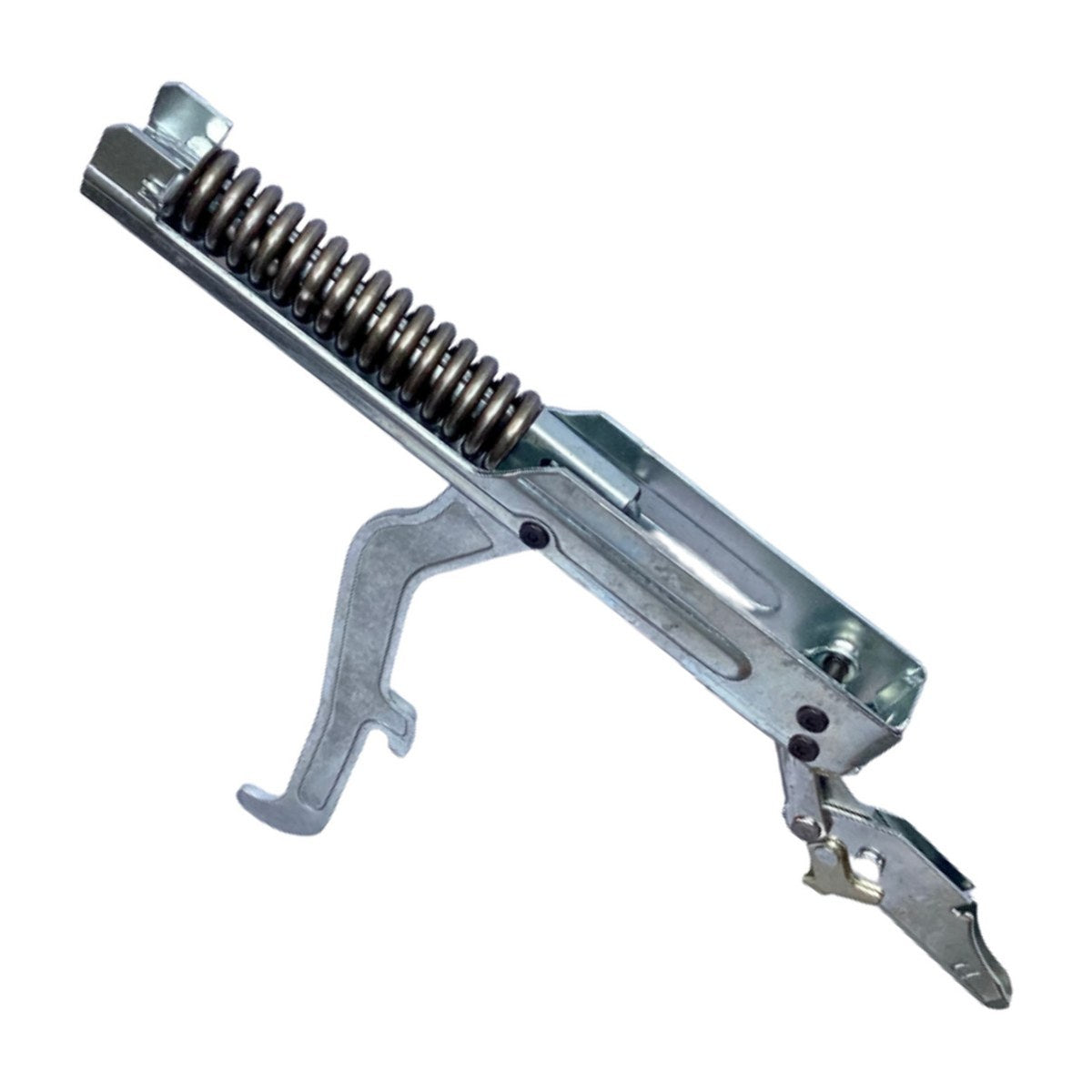

0045001051 is a genuine Electrolux group oven door hinge used across Chef, Simpson and Westinghouse ovens and cookers. With 164 models on file, it covers older 61C and 61D series cookers such as the 61C810W and 61D810W, the PAJ range including the PAJ140W, PAJ161B, PAJ501R and PAJ558W, and the EBC5010W and EUC5110W. The longer code 85800450010518 is linked to the same hinge.

Chef, Simpson or Westinghouse oven door sagging? Check the hinges

Each hinge carries part of the door's weight and uses a spring to pull the door closed against the oven seal. Years of opening and closing, plus heat from the cavity, slowly weaken the spring and wear the pivots. A failing hinge shows up as a door that falls open with a thud, won't close fully, rocks from side to side or leaves a visible gap at one corner. Heat leaking through that gap means slower cooking, wasted power and a hot front panel. Leaning on an open door or resting heavy trays on it speeds up the damage.

Part details

• Genuine Electrolux group part 0045001051
• Linked to code 85800450010518
• Fits Chef, Simpson and Westinghouse ovens and cookers
• Listed for 164 oven and cooker models
• Covers 61C, 61D, PAJ, EBC and EUC series

Tips for swapping the hinge

Let the oven cool and turn off the power before starting. Open the door fully and note how the hinge locks so the door can be lifted away, photographing each step. With a second person holding the door, remove the worn hinge, fit the new one the same way round and lower the door back onto both hinges. Close it slowly to check it sits square and seals evenly.

Questions about this part

How do I find the model of my oven?

Open the door and look around the edge of the oven frame or on the door edge for the rating label. It shows a model such as PAJ140W or 61D810W. Compare it with the list on this page or send it through the parts enquiry form.
